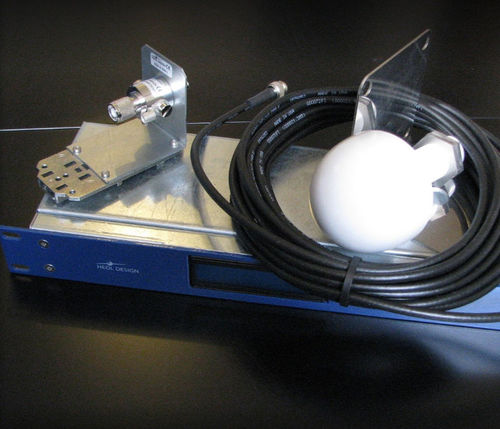

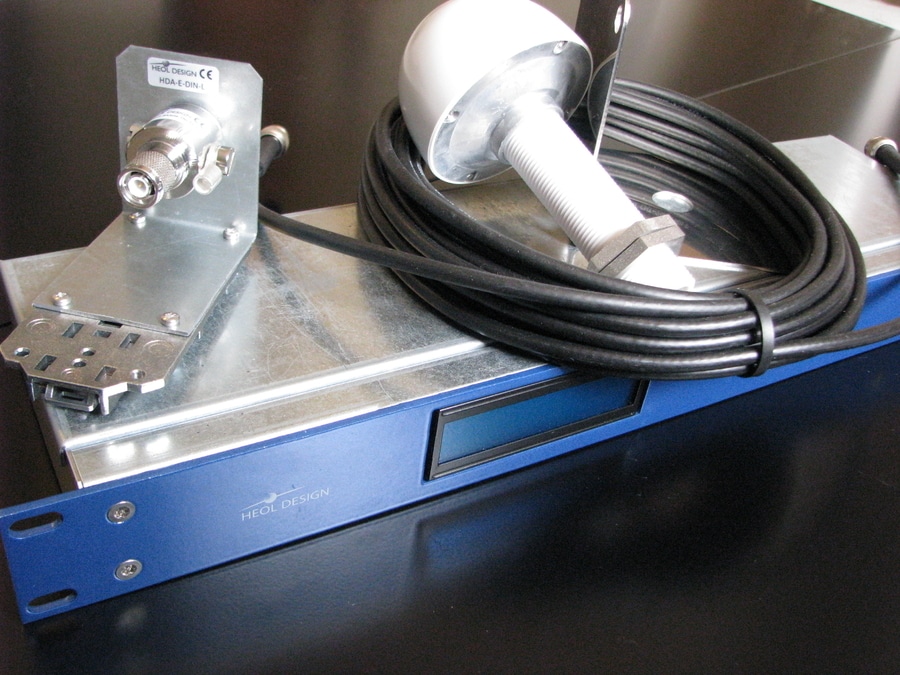

T109 : GPS/GLONASS/ BEIDOU/ GALILEO Zeitserver mit OSNMA
{{{sourceTextContent.subTitle}}}
Itraduis en allemand : T109 GNSS NTP/NTS Server — Security and Precision, with Optional OSNMA
As cybersecurity becomes more critical than ever, the T109 delivers accurate and secure time synchronization for your network, with optional OSNMA anti-spoofing authentication.
OSNMA: Authenticating Galileo Signals
OSNMA (Open Service Navigation Message Authentication), developed by ESA for Galileo, provides cryptographic validation of navigation data. It protects against spoofing and ensures that received time signals have not been tampered with.
Why Choose the T109?
- Anti-spoofing: cryptographic validation of Galileo signals (OSNMA).
- Redundancy: multi-constellation reception (Galileo + GPS), independent of a single system.
- Precision: microsecond-level synchronization.
- Performance: up to 10,000 NTP/NTS requests per second.
- Compliance: meets the security requirements of critical infrastructure.
Network Protocol Security
- NTS (Network Time Security): encryption and authentication of NTP exchanges, protecting against spoofing and network interception.
- HTTPS: secure access to the web administration interface.
- SNMPv3: industrial-grade configuration and monitoring.
Network Connectivity
- 4 Ethernet LAN ports (Lan1 to Lan4) — 1 Gb
- 2 SFP ports (Sfp1, Sfp2) — 2.5 GbE
- 1 Ethernet WAN port — 1 Gb
Each port has its own independent network configuration (subnet, enable/disable, dedicated MAC address).
Other Features
- HTTP/HTTPS web interface available in French, English, and Spanish
- Simple integration with existing NTP infrastructure

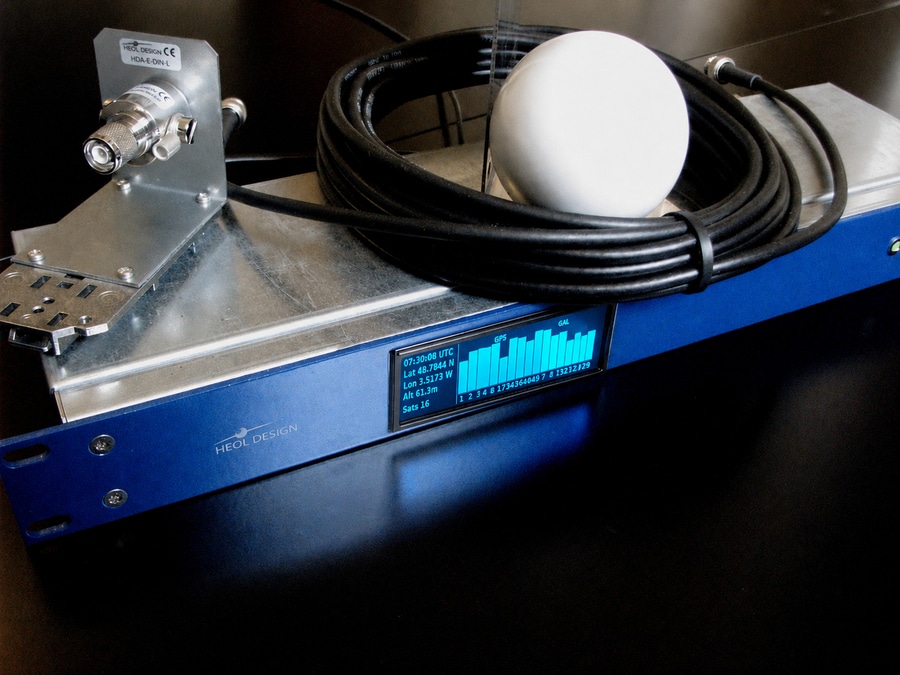

- OLED graphic display for quick status and parameter monitoring
- SSH, syslog, SNMPv3, DHCP
- OCXO or Rubidium oscillator option
Upgrade to a secure NTP/NTS server today. Contact us to learn more about the T109.
